Piezo vs. Voice Coil: The Honest Comparison for Sub-mm Stroke Positioning
If your application demands positioning accuracy below one millimeter of travel, you have almost certainly narrowed your actuator shortlist to two candidates: piezoelectric motors and voice coil actuators (VCAs). Both are friction-free in their pure form, both can achieve sub-micron resolution, and both are available from multiple vendors in off-the-shelf packages. Yet they operate on fundamentally different physics, and those differences dictate where each technology excels and where it struggles.
This article lays out the comparison with specific numbers, no vendor favoritism, and enough detail to let you make a defensible engineering choice.

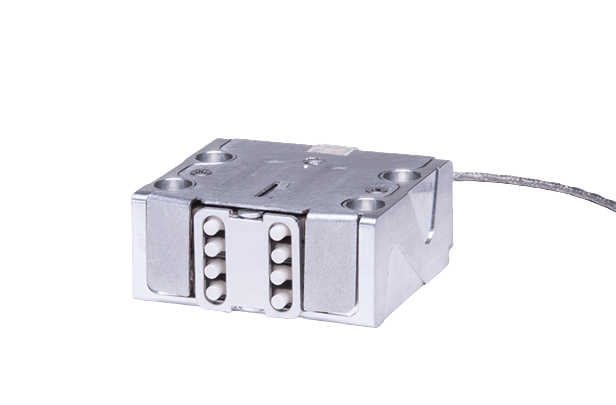

Image: Nanomotion Ltd.
Operating Principles
Piezoelectric Actuators
A piezoelectric actuator converts electrical field energy directly into mechanical strain. Apply a voltage across a PZT (lead zirconate titanate) ceramic element and it changes dimension, typically by 0.1% to 0.15% of its length. A 10 mm stack actuator produces roughly 10 to 15 micrometers of free stroke. To reach useful travel ranges (tens to hundreds of micrometers), manufacturers bond many thin ceramic layers into a multilayer stack, reducing the required drive voltage to 100 to 150 V while preserving total displacement.
The key physics: piezo actuators are fundamentally stiffness devices. A typical multilayer stack has an axial stiffness of 50 to 500 N/micrometer. They generate force by resisting displacement, not by sustaining current. At full blocking force (zero displacement), a 10 mm diameter stack can produce 3,000 to 5,000 N. At free stroke (zero load), force is zero.
Voice Coil Actuators
A voice coil actuator is a single-phase, limited-stroke electromagnetic motor. A coil of wire sits in a permanent magnetic field (typically from NdFeB magnets). Current through the coil produces a Lorentz force proportional to current, magnetic flux density, coil length, and number of turns. The force-stroke relationship is essentially flat across the stroke range, so long as the coil remains within the uniform field region.
The key physics: voice coils are fundamentally force devices. They produce force proportional to current, independent of position (within the linear region). A typical VCA for sub-mm positioning generates 1 to 50 N continuous force and 3 to 150 N peak force. Stiffness is zero; without a position sensor and servo loop, a VCA has no inherent position holding.
Force-Stroke Characteristics
This is the most important distinction and the one most often glossed over in marketing literature.
Piezo actuators have a force-stroke relationship that is linear and bounded by two limits. At zero displacement, blocking force is maximum (often thousands of newtons). At maximum free stroke, force is zero. Every micrometer of displacement costs force, and the rate of that tradeoff is the actuator stiffness. For a stack with 100 N/micrometer stiffness and 15 micrometer free stroke, the maximum available force at 7.5 micrometer displacement is 750 N.
Voice coil actuators produce constant force at any position within the linear stroke range. A VCA rated at 10 N continuous delivers 10 N whether it is at 0 mm, 0.25 mm, or 0.5 mm displacement. The force is limited only by thermal dissipation in the coil.
Practical consequence: if your application needs constant force over the full stroke (active vibration isolation, constant-pressure bonding), a VCA is the natural choice. If your application needs maximum stiffness and force at or near a fixed point (nanopositioning, optical mirror tilt), piezo is superior.
Detailed Force-Displacement Comparison
The following table compares force output at various displacement points for representative actuators in each class. The piezo actuator is a 10 x 10 x 18 mm multilayer stack with 15 micrometer free stroke and 3,000 N blocking force (stiffness: 200 N/micrometer). The VCA is a 25 mm diameter moving-coil actuator with 1.0 mm stroke, 8.5 N/A force constant, and 3.5 ohm coil resistance.
| Displacement (micrometers) | Piezo Available Force (N) | VCA Force at 1 A (N) | VCA Force at 2 A (N) |
|---|---|---|---|
| 0 | 3,000 | 8.5 | 17.0 |
| 1 | 2,800 | 8.5 | 17.0 |
| 3 | 2,400 | 8.5 | 17.0 |
| 5 | 2,000 | 8.5 | 17.0 |
| 7.5 | 1,500 | 8.5 | 17.0 |
| 10 | 1,000 | 8.5 | 17.0 |
| 12 | 600 | 8.5 | 17.0 |
| 15 (full stroke) | 0 | 8.5 | 17.0 |
| 100 | N/A (beyond range) | 8.5 | 17.0 |
| 500 | N/A | 8.5 | 17.0 |
| 1,000 (1 mm) | N/A | 8.5 | 17.0 |
The pattern is clear. The piezo actuator dominates in force near its neutral position but delivers zero force at full stroke. The VCA delivers modest but perfectly uniform force across its entire stroke range. For a semiconductor die-bonding tool that must apply exactly 5 N of force at any point within a 200 micrometer travel range, the VCA is the natural fit. For an adaptive optics mirror that must resist 500 N of wind loading while correcting position by 2 micrometers, the piezo is the only realistic option.
Worked Example: Force Budget for a Vertical Positioning Stage
Consider a vertical axis that must support a 200 g payload (1.96 N gravity load) and position it with 10 nm resolution over 100 micrometers of travel.
VCA approach: The actuator must supply 1.96 N continuously to counteract gravity, plus whatever force is needed for acceleration. With a force constant of 8.5 N/A, the gravity compensation current is 1.96 / 8.5 = 0.23 A. At 3.5 ohm coil resistance, this dissipates 0.23^2 x 3.5 = 0.19 W continuously. Manageable, but this heat is constant and unavoidable. Adding a counterbalance spring reduces the current but introduces spring rate nonlinearity and potential resonances.
Piezo approach: Use an amplified piezo actuator (lever amplification, 5x) with 100 micrometer stroke and 50 N/micrometer effective stiffness. The gravity load of 1.96 N displaces the stage by 1.96 / 50 = 0.04 micrometers, which is negligible compared to the full stroke. The piezo absorbs the gravity load through its inherent stiffness with zero power consumption. Position control uses voltage modulation, and at static hold, power draw is effectively zero.
The piezo approach wins this scenario decisively on thermal grounds, provided the 100 micrometer stroke is sufficient.

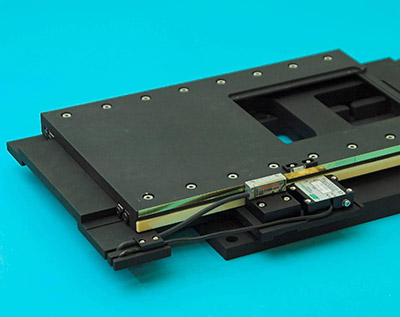

Image: Nanomotion Ltd.
Bandwidth and Dynamic Response
Piezoelectric actuators are inherently fast. The mechanical resonance frequency of a bare stack actuator is typically 5 to 50 kHz, depending on mass and stiffness. With a flexure-guided stage and payload, first resonance drops to 0.5 to 5 kHz. Closed-loop bandwidth (at -3 dB) is usually one-third to one-fifth of the first mechanical resonance, placing practical servo bandwidth at 100 Hz to 1.5 kHz for loaded stages.
Voice coil actuators have lower mechanical resonance because the moving mass (coil or magnet) is supported by soft flexures or air bearings. Typical first resonance is 20 to 200 Hz for a flexure-guided VCA stage. Closed-loop bandwidth is 50 to 500 Hz for most commercial units. High-performance custom VCAs in hard disk drive suspensions have reached 2 to 5 kHz bandwidth, but these are lightweight, short-stroke designs optimized for that specific application.
The electrical time constant also matters. Piezo actuators are capacitive loads (typically 0.1 to 10 microfarads for a multilayer stack). The amplifier must charge and discharge this capacitance, which at high frequencies demands significant current. A 1 microfarad piezo driven at 1 kHz with 100 V amplitude requires roughly 0.6 A RMS. At 10 kHz, that rises to 6 A. The amplifier, not the actuator, often becomes the bandwidth bottleneck.
Voice coils are inductive loads with time constants of 0.1 to 2 ms. At low frequencies, the response is current-limited. At high frequencies, the inductance limits the rate of current change. Most VCA drivers use current-mode amplifiers to push through this limitation.
Bandwidth Comparison Across Stroke Ranges
The bandwidth achievable by each technology varies significantly with the required stroke range. Longer strokes mean larger, heavier stages and lower resonance frequencies for both technologies, but the degradation curve is steeper for piezo actuators because flexure amplification adds mass and compliance.
| Stroke Range | Piezo Closed-Loop BW | VCA Closed-Loop BW | Winner |
|---|---|---|---|
| 5 micrometers (bare stack) | 2 to 10 kHz | N/A (impractical) | Piezo |
| 15 micrometers (stack + flexure) | 500 Hz to 2 kHz | 100 to 300 Hz | Piezo |
| 50 micrometers (amplified piezo) | 200 Hz to 800 Hz | 100 to 400 Hz | Piezo (narrower margin) |
| 100 micrometers (amplified piezo) | 100 Hz to 500 Hz | 100 to 400 Hz | Comparable |
| 200 micrometers (large amplifier) | 50 Hz to 200 Hz | 80 to 350 Hz | VCA (often) |
| 500 micrometers | 20 Hz to 100 Hz | 60 to 300 Hz | VCA |
| 1 mm | Impractical for piezo | 50 to 250 Hz | VCA |
| 5 mm | N/A | 30 to 150 Hz | VCA |
The crossover point is approximately 100 to 200 micrometers of stroke. Below that range, piezo dominates in bandwidth. Above it, the VCA's simpler mechanical design (no lever amplification, lower moving mass per unit stroke) gives it the advantage.
Settling Time Comparison
For step-and-settle applications (semiconductor inspection, pick-and-place), the relevant metric is settling time to a given positional tolerance, not bandwidth per se. The two are related but not identical, because the piezo's high stiffness provides natural damping against external disturbances while the VCA's zero stiffness makes it susceptible to overshoot without careful controller tuning.
| Settling Criterion | Piezo (15 um stroke) | VCA (1 mm stroke) |
|---|---|---|
| To within 1% of final value | 0.3 to 2 ms | 2 to 10 ms |
| To within 0.1% of final value | 1 to 5 ms | 5 to 30 ms |
| To within 10 nm | 0.5 to 3 ms | 3 to 20 ms |
| To within 1 nm | 2 to 10 ms | 10 to 100 ms |
The piezo advantage in settling time is typically a factor of 3 to 10, which is a direct consequence of the higher mechanical resonance frequency and greater inherent stiffness.
Bottom line: piezo wins on raw bandwidth in most configurations, often by a factor of 3 to 10. For applications requiring settling times below 1 ms, piezo is usually the only practical choice. However, at strokes beyond 200 micrometers, the VCA reclaims the bandwidth advantage.
Resolution
Both technologies can achieve extremely fine resolution, but through different mechanisms.
Piezoelectric actuators have essentially infinite theoretical resolution because ceramic strain is continuous and non-quantized. Practical resolution is limited by the driver electronics (DAC resolution, noise floor) and the mechanical design (flexure hysteresis, sensor noise). Commercial piezo nanopositioning stages routinely achieve 0.1 nm resolution in closed-loop operation with capacitive sensors. Open-loop resolution of 0.01 nm has been demonstrated in laboratory conditions.
Voice coil actuators also have continuous motion with no quantization. Resolution is limited by the position sensor, the current noise in the driver, and external vibration. Commercial VCA stages achieve 1 to 100 nm resolution depending on sensor type (capacitive, interferometric, or encoder). The best VCA nanopositioning stages approach 0.5 nm resolution.
The practical difference is that achieving sub-nanometer resolution with a VCA requires extremely low-noise current sources and excellent shielding from electromagnetic interference, because force is proportional to current and any current noise translates directly into force noise and position error. Piezo actuators are less sensitive to electrical noise because they are voltage-driven and the high stiffness of the ceramic suppresses disturbance-induced motion.
Resolution Sensitivity Analysis
To understand why piezo actuators achieve finer resolution in practice, consider the force noise floor. A VCA with 8.5 N/A force constant driven by an amplifier with 1 mA RMS current noise produces a force noise of 0.0085 N. If the stage has a moving mass of 50 g and a flexure stiffness of 200 N/m, the position noise from this force is:
x_noise = F_noise / k_flexure = 0.0085 / 200 = 42.5 micrometers
This result is obviously far too large, which is why VCA stages use closed-loop feedback. The servo loop suppresses this noise within its bandwidth, but beyond the servo bandwidth, the noise passes through. If the servo bandwidth is 200 Hz, noise above 200 Hz causes position error. With typical amplifier noise spectra, the integrated position noise for a VCA stage is 1 to 10 nm RMS.
For a piezo stage, the same analysis differs fundamentally. The piezo actuator has a stiffness of 50 to 200 N/micrometer (50 to 200 x 10^6 N/m). A voltage noise of 1 mV RMS on a 100 V drive signal produces a strain noise of:
x_noise = (1 mV / 100 V) x 15 micrometers = 0.15 nm RMS
The piezo's enormous stiffness means that electrical noise and external disturbances translate into vastly smaller position errors. This is the fundamental reason why sub-nanometer positioning is easier to achieve with piezo actuators.
Power Consumption and Thermal Behavior
This is where the comparison becomes stark.
Piezoelectric actuators consume power only when changing position. At static hold, current draw is essentially zero (just leakage current through the ceramic, typically nanoamps). Dynamic power consumption is proportional to frequency, voltage swing, and capacitance: P = pi x f x C x V^2. A 1 microfarad actuator cycling at 100 Hz over 100 V dissipates roughly 3 W. But at a fixed position, heat generation is negligible.
Voice coil actuators consume power whenever holding force. Because a VCA has zero inherent stiffness, holding a position against any external force (including gravity) requires continuous current. Power dissipation is I^2 x R, where R is the coil resistance (typically 1 to 20 ohms). A VCA holding 5 N against a 10 ohm coil with a force constant of 5 N/A draws 1 A and dissipates 10 W continuously.
Thermal Analysis Worked Example
Consider a semiconductor inspection station where an actuator must hold a probe tip at a fixed position for 8 hours per shift, with intermittent 10 micrometer repositioning events occurring roughly once per minute.
VCA thermal scenario:
The VCA must hold 3 N against gravity (probe assembly mass of ~300 g). With a force constant of 6 N/A and coil resistance of 5 ohms:
- Holding current: 3 / 6 = 0.5 A
- Holding power: 0.5^2 x 5 = 1.25 W continuous
- Energy over 8-hour shift: 1.25 x 8 x 3600 = 36,000 J = 36 kJ
This 1.25 W is continuous heat injection into the metrology frame. The coil temperature rises according to the thermal resistance of the actuator housing. For a typical 25 mm VCA with thermal resistance of 15 degrees C/W:
- Coil temperature rise: 1.25 x 15 = 18.75 degrees C above ambient
- If ambient is 22 degrees C, coil reaches 40.75 degrees C
This temperature rise is moderate but produces consequences:
- Coil resistance increases by 7.3% (copper TCR of 0.00393/degree C x 18.75 degrees C), changing the force-to-current relationship
- Thermal expansion of the VCA housing (aluminum, 23 ppm/degree C) produces 23 x 10^-6 x 18.75 x 25 mm = 10.8 micrometers of dimensional change
- Thermal gradient in the mounting structure causes bimetallic bending, introducing position drift on the order of 0.1 to 1 micrometer per degree C, depending on the structural design
Even with a servo loop correcting position, the thermal drift introduces low-frequency position errors that must be tracked by the sensor and controller. In a high-accuracy metrology application, this thermal perturbation can be the dominant error source.
Piezo thermal scenario:
The piezo actuator holds position at a fixed voltage. Leakage current is 10 nA at 100 V, dissipating 1 microwatt. Over an 8-hour shift, total energy dissipated: 0.029 J. The temperature rise is effectively zero. There is no thermal drift, no resistance change, and no dimensional change from actuator self-heating.
During repositioning (once per minute, 10 micrometer step), the piezo capacitance (1 microfarad) charges from one voltage to another. Energy per transition: 0.5 x C x delta_V^2. For a 10 micrometer step on a 15 micrometer actuator, delta_V is roughly 67 V. Energy: 0.5 x 10^-6 x 67^2 = 0.0022 J. Over 480 transitions per shift: 1.07 J total. Negligible heating.
The thermal advantage is decisive for this application: effectively zero thermal perturbation from the piezo, versus a continuous 1.25 W heat source from the VCA.
Comprehensive Thermal Comparison Table
| Scenario | Piezo Power (W) | VCA Power (W) | Piezo Temp Rise (C) | VCA Temp Rise (C) |
|---|---|---|---|---|
| Static hold, no external load | ~0 | ~0 | ~0 | ~0 |
| Static hold, 1 N gravity load | ~0 | 0.03 to 0.5 | ~0 | 0.5 to 7.5 |
| Static hold, 5 N gravity load | ~0 | 1.0 to 12.5 | ~0 | 15 to 60+ |
| Static hold, 10 N gravity load | ~0 | 4.0 to 50 | ~0 | 60 to 150+ (requires cooling) |
| 10 Hz scanning, 10 um amplitude | 0.03 | 0.1 to 0.5 | ~0 | 1 to 7 |
| 100 Hz scanning, 10 um amplitude | 0.3 | 0.5 to 2.0 | 0.5 | 7 to 30 |
| 1 kHz scanning, 10 um amplitude | 3.0 | 5 to 20 | 5 | 30 to 100+ |
| 100 Hz scanning, 100 um amplitude | 3.0 | 1 to 5 | 5 | 15 to 75 |
At high scanning frequencies, piezo power consumption rises (due to capacitive charging currents), and the gap narrows. At 1 kHz and above, both technologies produce significant heat and may require active cooling. But the static-hold thermal advantage of piezo remains decisive regardless of operating frequency.
Hysteresis and Linearity
Piezoelectric ceramics exhibit significant hysteresis, typically 10% to 15% of full stroke for PZT materials. This means that the displacement at a given voltage depends on the history of applied voltages. In open-loop operation, this introduces positioning errors of 1 to 2 micrometers on a 15 micrometer stroke actuator. Closed-loop control with a position sensor eliminates hysteresis effects but adds cost and complexity. Charge-drive amplifiers can reduce open-loop hysteresis to 1% to 2%, at the expense of more complex driver electronics.
Voice coil actuators are inherently linear within their operating range. Force is proportional to current with excellent fidelity, and the force-position relationship is flat. Non-linearities arise only at the ends of travel (where the coil exits the uniform field region) or at very high forces (where magnetic saturation occurs). In closed-loop operation, VCA linearity is typically 0.01% to 0.1% of full stroke.
For applications demanding high linearity without closed-loop control, the VCA has a clear advantage. For closed-loop applications, both technologies deliver comparable linearity.
Linearity Error Budget Comparison
| Error Source | Piezo (open-loop) | Piezo (closed-loop) | VCA (open-loop) | VCA (closed-loop) |
|---|---|---|---|---|
| Hysteresis | 10% to 15% FS | Eliminated | < 0.1% FS | Eliminated |
| Creep (30 s after step) | 1% to 5% FS | Eliminated | N/A | N/A |
| Thermal drift | 0.01%/degree C | Sensor-limited | 0.05%/degree C | Sensor-limited |
| Amplifier nonlinearity | 0.01% to 0.1% FS | Negligible | 0.01% to 0.1% FS | Negligible |
| Sensor noise floor | N/A | 0.1 to 1 nm | N/A | 1 to 10 nm |
| Total positioning error (15 um range) | 1.5 to 2.5 um | 0.1 to 1 nm | 15 to 30 nm | 1 to 10 nm |
In closed-loop operation, the piezo system achieves roughly 10x better linearity than the VCA system, primarily because the piezo's high stiffness means the position sensor only needs to correct small errors, while the VCA sensor must provide all position information (the actuator has no inherent position reference).
Vacuum and Cleanroom Compatibility
Piezoelectric actuators are well-suited to vacuum environments. The ceramic elements contain no volatiles, outgassing is minimal after a standard bake-out, and there is no heat dissipation from coils to create thermal management challenges in vacuum (where convective cooling is absent). Multilayer stacks are routinely used in ultra-high vacuum (UHV) applications at pressures below 10^-10 mbar.
Voice coil actuators present challenges in vacuum. The coil dissipates heat continuously, and without convective cooling, thermal management becomes critical. The adhesives in the coil, the wire insulation, and the magnet coatings can outgas. Vacuum-compatible VCAs are available but require special materials, add cost, and typically have reduced force ratings due to thermal derating.
For cleanroom applications, both technologies can be designed for particle-free operation. Piezo flexure stages have no sliding contacts and generate no particles in principle. VCA stages also use flexure guidance and are particle-free. The main cleanroom concern with VCAs is thermal convection currents from the hot coil, which can disturb local air currents in sensitive optical paths.
Vacuum Derating for VCA
The loss of convective cooling in vacuum significantly reduces VCA continuous force ratings. Typical derating factors:
| Pressure Range | Convective Cooling Available | VCA Continuous Force Derating | Piezo Derating |
|---|---|---|---|
| Atmosphere (1013 mbar) | Full | 100% (rated) | 100% (rated) |
| Rough vacuum (1 to 10 mbar) | Reduced | 60% to 80% | 100% |
| High vacuum (10^-3 to 10^-6 mbar) | None | 30% to 50% | 100% |
| Ultra-high vacuum (< 10^-9 mbar) | None | 20% to 40% | 100% |
A VCA rated for 10 N continuous in air may only sustain 3 to 5 N in high vacuum without additional thermal management (conductive cooling through the mounting, radiation shields, or Peltier coolers). The piezo actuator operates at full rated performance regardless of pressure, because it generates negligible heat at static hold.
Cost Comparison
The cost comparison depends heavily on the performance tier and stroke range. Below is a detailed breakdown for complete, ready-to-use positioning stages (actuator, driver, sensor, and controller included).
| Performance Tier | Stroke | Piezo System Cost | VCA System Cost | Notes |
|---|---|---|---|---|
| Basic open-loop | 15 um | $300 to $800 | N/A | VCA impractical without feedback |
| Closed-loop, 100 nm resolution | 15 um | $1,500 to $3,000 | $1,000 to $2,500 | Piezo simpler; VCA needs good sensor |
| Closed-loop, 10 nm resolution | 15 um | $2,500 to $5,000 | $2,000 to $4,000 | Comparable cost, piezo better performance |
| Closed-loop, 1 nm resolution | 15 um | $4,000 to $8,000 | $5,000 to $12,000 | VCA needs ultra-low-noise driver |
| Closed-loop, 100 nm resolution | 100 um | $3,000 to $6,000 | $1,500 to $3,500 | Piezo needs amplification; VCA natural |
| Closed-loop, 100 nm resolution | 500 um | $6,000 to $15,000 | $2,000 to $5,000 | Piezo at stroke limit; VCA clearly cheaper |
| Closed-loop, 100 nm resolution | 1 mm | Impractical (single stage) | $2,500 to $6,000 | VCA is the only option |
| Closed-loop, 100 nm resolution | 5 mm | N/A | $3,000 to $8,000 | VCA only |
| Vacuum compatible, 10 nm res | 15 um | $5,000 to $10,000 | $8,000 to $20,000 | VCA vacuum derating + thermal mgmt |
| Vacuum compatible, 10 nm res | 100 um | $6,000 to $12,000 | $6,000 to $15,000 | Comparable, piezo simpler in vacuum |
Key cost observations:
- At short strokes (below 50 micrometers), piezo is often cheaper for a given resolution because the driver electronics are simpler and no elaborate thermal management is needed.
- At longer strokes (above 200 micrometers), VCA becomes cheaper because piezo actuators need flexure amplification, which adds mechanical complexity and cost.
- For vacuum applications, piezo systems are almost always cheaper at equivalent performance because VCA vacuum compatibility requires expensive thermal solutions.
- The amplifier cost is often the hidden driver. A high-voltage piezo amplifier capable of driving 1 microfarad at 1 kHz costs $500 to $2,000. A low-noise current amplifier for a VCA costs $300 to $1,500. At sub-nanometer resolution, the VCA amplifier cost rises sharply because current noise requirements tighten.
When Voice Coil Wins
Voice coil actuators are the better choice when:
- Stroke exceeds 0.5 mm. Piezo stacks and flexure amplifiers become large, expensive, and lossy above roughly 500 micrometers of travel. VCAs with 1 to 50 mm stroke are readily available and affordable.
- Constant force is required over full travel. Gravity compensation, active vibration isolation, constant-force testing, and similar applications benefit from the flat force-stroke characteristic of VCAs.
- Linearity matters more than stiffness. Open-loop VCA linearity (0.1% to 1%) beats open-loop piezo linearity (85% to 90% after hysteresis).
- Cost sensitivity at moderate resolution. For applications needing 1 to 10 micrometer resolution over 1 to 10 mm stroke, a VCA with a linear encoder is often cheaper than a piezo stage with comparable specifications.
- The application involves continuous scanning at moderate speeds. Autofocus mechanisms, scanning probe retract, and similar uses where the actuator moves continuously at 1 to 100 Hz over millimeter-scale strokes.
When Piezo Wins
Piezoelectric actuators are the better choice when:
- Sub-nanometer resolution is required. Below 1 nm, piezo with capacitive sensors is the established solution. VCAs struggle to achieve this consistently due to current noise.
- Bandwidth above 500 Hz is needed. Piezo stages with loaded resonance above 1 kHz are common. VCA stages above 500 Hz bandwidth are rare and expensive.
- Static hold without power consumption matters. Any application where the actuator must hold position for extended periods (hours to days) benefits from the zero-power hold of piezo.
- Vacuum or UHV operation. The absence of continuous heat dissipation makes piezo the natural choice.
- Stiffness is critical. Piezo flexure stages with axial stiffness of 10 to 100 N/micrometer resist external disturbances far better than VCA stages, which have near-zero open-loop stiffness.
- Magnetic field sensitivity. Piezo actuators generate no magnetic fields. VCAs contain strong permanent magnets and produce stray fields that can interfere with electron beams, SQUID detectors, or MRI equipment.
Application Decision Scenarios
Scenario 1: Autofocus for a Microscope Objective
Requirements: 200 micrometer travel, 50 nm resolution, 100 Hz bandwidth, atmospheric pressure, continuous scanning during image acquisition, vertical axis (gravity load of 150 g objective).
Analysis: The 200 micrometer stroke is at the upper limit for amplified piezo actuators and well within VCA range. The 50 nm resolution is achievable by both technologies. The continuous scanning duty cycle means the VCA's power consumption is comparable to the piezo's capacitive losses. The gravity load of 1.47 N creates a continuous thermal load for the VCA (roughly 0.15 W, manageable).
Recommendation: VCA. The stroke range favors it, the resolution is easily achievable, and the continuous scanning duty cycle means the piezo's static-hold advantage is unused. A moving-magnet VCA with a linear encoder provides an elegant, compact solution. Cost: approximately $2,000 to $4,000 complete.
If the requirement changes to 20 micrometer travel and 500 Hz bandwidth (e.g., for confocal Z-scanning), the answer flips to piezo.
Scenario 2: Active Mirror Alignment in a Laser Cavity
Requirements: 5 micrometer travel, 0.5 nm resolution, 1 kHz bandwidth, hold for hours between adjustments, vibration immunity from adjacent equipment, low magnetic emission (nearby magnetometer).
Analysis: The short stroke (5 micrometers) and high bandwidth (1 kHz) strongly favor piezo. The 0.5 nm resolution is routine for piezo with a capacitive sensor but would require an expensive ultra-low-noise current driver for a VCA. The hours-long hold time creates a significant thermal penalty for the VCA. The magnetic sensitivity requirement eliminates the VCA entirely (NdFeB magnets produce stray fields of 0.1 to 10 mT at the actuator surface).
Recommendation: Piezo, definitively. A closed-loop piezo stack with capacitive sensor achieves all requirements with margin. Cost: approximately $3,000 to $6,000 complete.
Scenario 3: Vibration Isolation Platform, Active Vertical Axis
Requirements: 2 mm travel, 1 micrometer resolution, 200 Hz bandwidth, continuous active damping (actuator always moving to cancel vibration), payload of 50 kg, atmospheric pressure.
Analysis: The 2 mm stroke is beyond single-stage piezo capability. The 1 micrometer resolution is achievable by VCA with a good encoder. The continuous active damping means the actuator never holds still, so piezo's static-hold advantage is irrelevant. The 50 kg payload requires 490 N of gravity support; even with a pneumatic isolator carrying the static load, the VCA must provide dynamic force for vibration cancellation (typically 10 to 50 N peak). This is well within VCA capability. A piezo actuator would need a stroke amplifier with a 100x or greater ratio, which is impractical at this scale.
Recommendation: VCA, clearly. Use a moving-coil VCA with a linear encoder and current-mode amplifier. The pneumatic spring supports the static load; the VCA handles dynamic correction. Cost: approximately $3,000 to $8,000 per axis, plus pneumatic system.
Hybrid Approaches
Increasingly, system designers combine both technologies in a single positioning system. The most common hybrid architecture uses a VCA for coarse positioning over a long stroke (1 to 25 mm) with a piezo stage for fine positioning over a short stroke (10 to 100 micrometers). The VCA handles the long-range slew and the piezo handles the final settling and precision hold.
This approach is widespread in semiconductor lithography (wafer stage coarse/fine alignment), disk drive testing (head positioning), and biological microscopy (objective focusing). The combined system achieves the long stroke of a VCA with the bandwidth and resolution of a piezo stage.
A second hybrid approach uses a VCA for active vibration isolation at low frequencies (0.5 to 100 Hz) while a piezo stage provides nanometer-level positioning on top of the isolated platform. This is common in scanning probe microscopy and interferometric metrology.
The tradeoff with hybrid systems is complexity: two actuators, two drivers, two sensors, and a controller that must coordinate both loops without introducing instabilities. Typical hybrid system costs run 1.5x to 2.5x the cost of a single-technology solution, but the performance gains often justify the investment.
Hybrid Architecture Performance Summary
| Architecture | Coarse Stage | Fine Stage | Total Stroke | System Resolution | System BW | Typical Cost |
|---|---|---|---|---|---|---|
| VCA + Piezo stack | VCA, 5 mm | Piezo, 15 um | 5.015 mm | 0.1 nm | 1 kHz (fine) | $8,000 to $20,000 |
| VCA + Amplified piezo | VCA, 25 mm | Piezo, 100 um | 25.1 mm | 1 nm | 500 Hz (fine) | $10,000 to $30,000 |
| VCA isolation + Piezo nano | VCA, 2 mm | Piezo, 50 um | N/A (isolation) | 0.1 nm | 200 Hz (iso), 1 kHz (nano) | $15,000 to $40,000 |
Quantitative Comparison Summary
| Parameter | Piezo (flexure stage) | Voice Coil (flexure stage) |
|---|---|---|
| Typical stroke | 5 to 500 micrometers | 0.1 to 50 mm |
| Resolution (closed-loop) | 0.1 to 1 nm | 1 to 100 nm |
| Bandwidth (-3 dB) | 100 Hz to 1.5 kHz | 50 to 500 Hz |
| Settling to 0.1% | 1 to 5 ms | 5 to 30 ms |
| Continuous force | 10 to 1,000 N (position-dependent) | 1 to 50 N (constant) |
| Stiffness | 10 to 500 N/micrometer | ~0 (open-loop) |
| Static power at hold | ~0 W | 1 to 50 W (load-dependent) |
| Dynamic power (100 Hz, 10 um) | 0.3 W | 0.5 to 2 W |
| Hysteresis (open-loop) | 10% to 15% | < 1% |
| Linearity (closed-loop) | 0.001% to 0.01% | 0.01% to 0.1% |
| Vacuum compatibility | Excellent (no derating) | Moderate (30% to 50% force derating) |
| Magnetic emission | None | Significant (0.1 to 10 mT at surface) |
| Operating temp range | -40 to +150 degrees C | -20 to +80 degrees C (coil limited) |
| Lifetime | Effectively unlimited (no wear) | Effectively unlimited (no wear) |
| Typical unit cost | $500 to $5,000 | $200 to $3,000 |
| Typical system cost | $1,500 to $12,000 | $1,000 to $8,000 |
Making the Decision
The decision between piezo and voice coil is not about which technology is "better." It is about which set of tradeoffs aligns with your application requirements.
Start with stroke. If you need more than 500 micrometers of travel, piezo becomes impractical for a single stage (though amplified piezo actuators can reach 1 to 2 mm). If you need less than 100 micrometers, piezo is almost always the better choice.
Next, consider duty cycle. If the actuator spends most of its time holding a fixed position under load, piezo's zero-power hold is a major advantage. If the actuator is continuously scanning, power consumption is comparable and the VCA's linearity may be preferred.
Then, check bandwidth. If you need settling times below 1 ms or tracking bandwidth above 500 Hz, piezo is likely necessary.
Consider the thermal budget. Calculate the heat injected by a VCA at the required holding force and evaluate whether your structure can tolerate that thermal perturbation. For metrology-grade applications, even 0.5 W of actuator heating can introduce unacceptable drift.
Finally, consider the environment. Vacuum, magnetic sensitivity, and cleanroom requirements all favor piezo. Cost sensitivity and long stroke favor voice coil.
There is no universal answer, but there is almost always a clear winner for a specific set of requirements. Define those requirements precisely, and the choice usually becomes obvious.
